Panel Mount Volt & Amp Meter DC 30V 100V 10A 50A 100A
Price RM5.50 - RM29.90
Product SKU 10-05-0-002-XX
Brand OEM
Size (L x W x H) 2 cm x 1 cm x 2 cm
Availability 204
Model
Quantity
Description

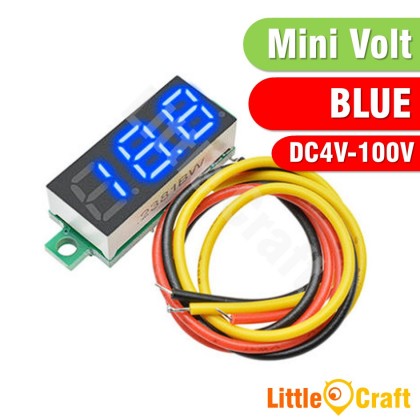

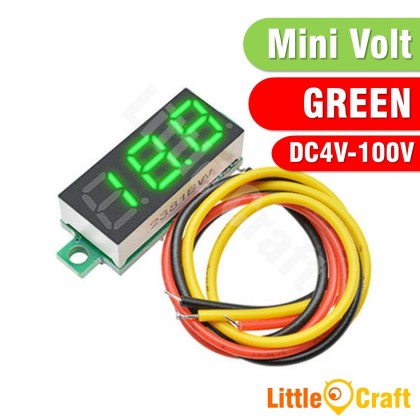

@Specification (For Mini Volt Meter)
+ Display color: Red, Yellow, Green, Blue
+ Two wire connection measurement range: DC 4.00 - 40.0V
+ Three wire connection measurement range: DC 4.00 - 100V
+ Min. supply voltage: DC 4.0 V
+ Max. supply voltage: DC 40.0 V
+ Permissible error: 1%(±1 digit)
+ Display mode: three-digit 0.36''LED digital tube
+ Size: 21.5 x 13 x 8mm (L*W*H)
+ Speed ratio: about 200ms/time
+ Working temperature: -10°~ +65°
+ Lead wire length: 15cm

@Specification (For Volt Meter)
+ Display color: Red, Green, Blue
+ Measurement range: DC 4.50 - 30.0V (RED), DC 4.70 - 30.0V (GREEN), DC 5.00 - 30.0V (BLUE)
+ Min. supply voltage: DC 4.0 V
+ Max. supply voltage: DC 40.0 V
+ Permissible error: 1%(±1 digit)
+ Display mode: three-digit 0.56''LED digital tube
+ Size: 48 x 29 x 22mm (L*W*H)
+ Mounting opening hole: 46 x 27mm (L*W)
+ Speed ratio: about 200ms/time

@Specification (For Volt & Amp Meter)
+ Working voltage:4.5-30V DC
+ Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burning
+ Working current:20mA
+ Display: 0.28" Two colors blue and red
+ Measuring range: DC 0-100V 0-10A or 0-50A or 0-100A
+ Minimum resolution (V): 0.1V
+ Refresh rate: 100mS / times
+ Measure accuracy: 1% (± 1 digit)
+ Minimum resolution (A): 0.01A
+ Operating temperature: -15 to 70° c
+ Working pressure: 80 to 106 kPa
+ Size :47×28×16 mm/1.85*1.10*0.63"
+ Net Weight:19 g
